PP3-36-J-U-36熱電偶探頭 美國omega熱電偶探頭


熱電偶剖面探頭，由高精度特殊誤差限制線(SLE)制成
PP3, PP6, and PP10 Series
熱電偶剖面探頭，由高精度特殊誤差限制線(SLE)制成
PP3, PP6, and PP10 Series:熱電偶剖面探頭，由高精度特殊誤差限制線(SLE)制成

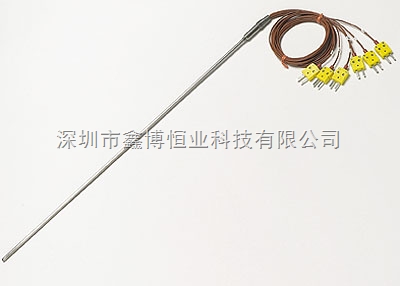

PP6-36-K-G-18
3, 6, & 10 Sensing Points
18 and 36" Lengths
36" Long, 24 AWG Stranded Individual Leads
3/16" Diameter 316SS Sheaths
J, K, T, and E Calibrations
Individual Thermocouple Terminations Labeled for Easy Identification
Up to 650°C (1200°F) Maximum Temperature Rating
Profile probes consist of several smaller diameter thermocouples placed inside a single outer sheath. They are best suited for profiling the temperature at various points along a single axis.


They can be used in many different applications: furnaces, reactors, heat exchangers, air ducts, and more. Mounting these probes with compression fittings permit easy adjustment of insertion position.
Profile Probe Configurator
The table below shows some typical configurations of profile probes. Omega also offers the Profile Probe Configurator a flexible online tool that will allows a user to configure a custom profile probe with up to


6 thermocouples. The Profile Probe Configurator is easy to use and does not require any log-on information. It provides in realtime the the price and availability of the configured probe.


The probe may be immediay ordered online or just note the part number and order anytime in the future by visiting Omega.com's Quick Order Page. The same part number may even be used for ordering through the ephone and . Visit the Profile

產品型號    產品描述
PP3-36-K-U-18  K type, ungrounded, Thermocouple, Sensing Length: 18", Space between points: 4.5", Number of sensing points: 3
PP3-36-K-G-18  K type, grounded, Thermocouple, Sensing Length: 18", Space between points: 4.5", Number of sensing points: 3
PP3-36-K-U-36  K type ungrounded Thermocouple, Sensing Length: 36", Space between points: 9", Number of sensing points: 3
PP3-36-K-G-36  K type grounded Thermocouple, Sensing Length: 36", Space between points: 9", Number of sensing points: 3
PP6-36-K-U-18  K type ungrounded Thermocouple, Sensing Length: 18", Space between points: 1.75", Number of sensing points: 6
PP10-36-K-U-18  K type ungrounded Thermocouple, Sensing Length: 18", Space between points: 1.25", Number of sensing points: 10
PP3-36-J-U-18  J type ungrounded Thermocouple, Sensing Length: 18", Space between points: 4.5", Number of sensing points: 3
PP10-36-J-U-18  J type ungrounded Thermocouple, Sensing Length: 18", Space between points: 1.25", Number of sensing points: 10
PP3-36-J-U-36  J type ungrounded Thermocouple, Sensing Length: 36", Space between points: 9", Number of sensing points: 3
PP3-36-J-G-36  J type grounded Thermocouple, Sensing Length: 36", Space between points: 9", Number of sensing points: 3
PP6-36-K-U-18  J type ungrounded Thermocouple, Sensing Length: 18", Space between points: 1.75", Number of sensing points: 6
PP6-36-K-G-18  J type grounded Thermocouple, Sensing Length: 18", Space between points: 1.75", Number of sensing points: 6


產品型號說明
(1) (2) (3) (4)
選項描述
(1) Number of Sensing Points
選擇
PP3-36 代表 3 Sensing Points
PP6-36 代表 6 Sensing Points
PP10-36 代表 10 Sensing Points
(2) Thermocouple Type
選擇
J 代表 J Thermocouple
K 代表 K Thermocouple
T 代表 T Thermocouple
E 代表 E Thermocouple
(3) Junction Style
選擇
U 代表 Ungrounded
G 代表 Grounded
(4) Sensing Length
選擇
18 代表 18 Inches
36 代表 36 Inches
